Pharmaceutical blister packs are vital for protecting medications from moisture, oxygen, and contaminants. To guarantee drug stability and patient safety, these packaging solutions must offer consistent and strong seals. One essential method for validating this seal performance is through heat seal integrity testing in accordance with ASTM F2029.
In this article, we explore how to evaluate the heat sealability of pharmaceutical blister packs using standard procedures. With a focus on laboratory tools like the Cell Instruments HST-01 Heat Seal Tester, we offer practical insights for quality control teams, packaging developers, and pharmaceutical manufacturers.
The Role of Pharmaceutical Blister Packs in Drug Safety
Blister packaging is widely adopted in the pharmaceutical industry due to its ability to provide unit-dose protection, extend product shelf life, and improve patient compliance. A typical blister pack consists of a thermoformed plastic cavity sealed with an aluminum or laminate lidding material. The strength and reliability of the seal between the cavity and the lid are critical to the pack’s effectiveness.
Any failure in the heat seal may lead to product contamination, loss of efficacy, or regulatory non-compliance. Therefore, validating and optimizing the sealing process through ASTM standards is an industry best practice.
Heat Seal Integrity Testing in Blister Packaging
Why Heat Seal Integrity Testing Matters
Heat seal integrity testing measures the bond strength between two layers of materials sealed under controlled heat and pressure. This process helps determine whether the seal is strong enough to withstand mechanical stress and environmental exposure during shipping and storage.
ASTM F2029, titled Standard Practices for Making Laboratory Heat Seals for Determination of Heat Sealability of Flexible Barrier Materials as Measured by Seal Strength, provides a structured approach to performing such tests. It enables manufacturers to develop a heat seal curve, helping to define the optimal sealing temperature range for blister packs.
Connection to Pharmaceutical Blister Packs
Blister lidding films often include aluminum foil or other laminated structures, requiring precise control over sealing parameters to prevent weak or over-sealed joints. ASTM F2029 is particularly relevant to these materials because it allows assessment of how different factors—such as temperature, pressure, and dwell time—impact seal strength.
Equipment for Heat Seal Testing: Laboratory vs. Production
In real-world production, blister packs are sealed using high-speed automatic machines. However, to assess seal strength in a controlled, repeatable environment, laboratories must use specialized instruments.

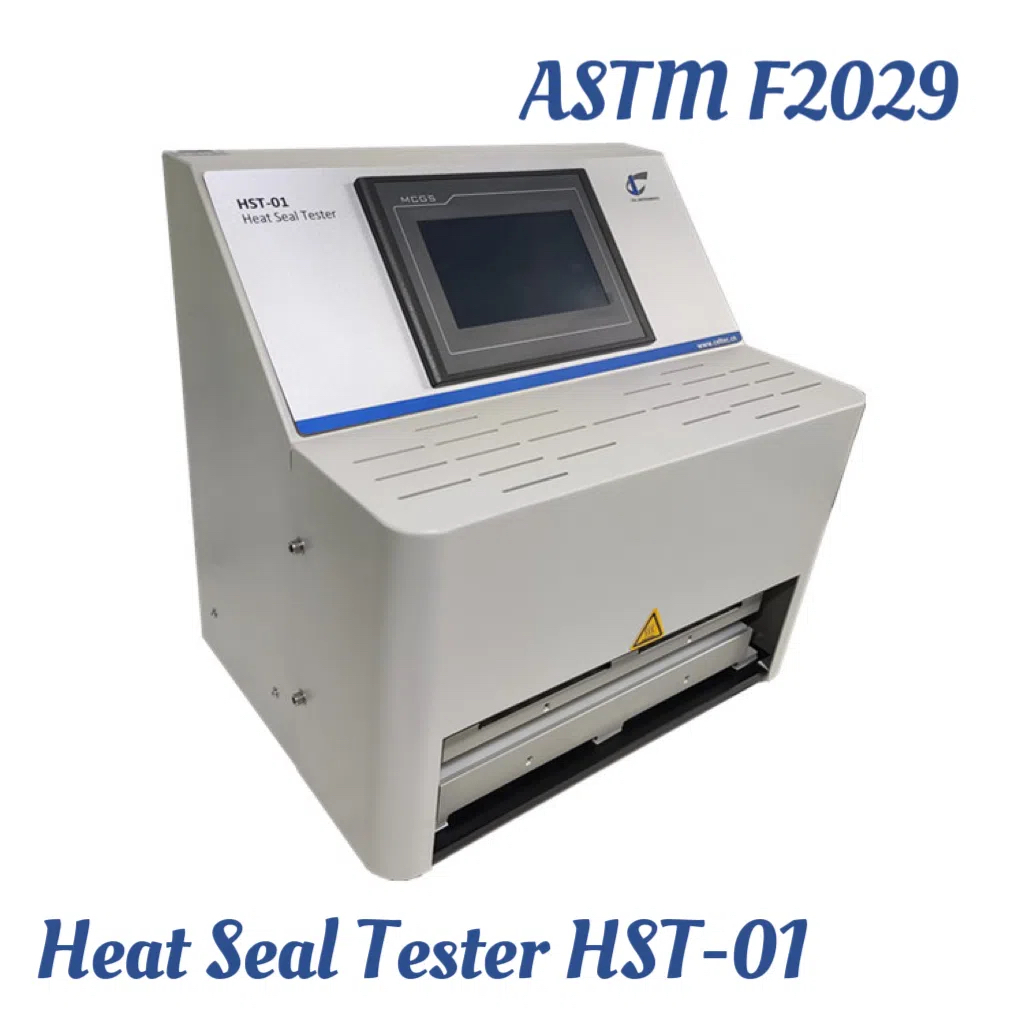

The Cell Instruments HST-01 Heat Seal Tester is an ideal solution for laboratory-scale heat seal integrity testing of pharmaceutical blister packs. It offers:
- Precise temperature control on both jaws
- Adjustable sealing pressure and dwell time
- Parallel jaw alignment for consistent specimen sealing
- Customizable jaw materials to replicate production sealing conditions
This lab-based approach allows users to simulate production conditions and fine-tune parameters to reduce waste and avoid future failures.
Key Procedures in ASTM F2029 for Blister Pack Testing
Sample Preparation
Start by preparing flat samples from the lidding and forming films. Cut strips to standardized widths (commonly 15 mm or 25 mm). Orientation (machine or transverse direction) should be noted if relevant. Superimpose the two pieces to be sealed, ensuring correct surface alignment.
Calibration and Setup
- Ensure the heat sealer is calibrated and jaws are parallel.
- Select suitable jaw coverings like TFE-fluorocarbon/glass cloth to prevent sticking, especially for laminated foils.
- Set temperature, pressure (typically 276–483 kPa), and dwell time based on material properties.
Performing the Heat Seal
Seal each specimen consistently, preferably in the same jaw area. Vary the temperature in small increments (e.g., 5°C–10°C) to create a heat seal curve. This curve identifies the temperature range where the material forms optimal seals—neither too weak nor too brittle.
Strength Testing
After sealing, test the seal strength using peel testing methods outlined in ASTM F88 or F1921. Record parameters like:
- Force to failure
- Mode of failure (adhesive, cohesive, delamination)
- Average and standard deviation from replicates
These metrics help quantify seal integrity and guide process improvements.
Practical Considerations and Common Challenges
- Material Compatibility: Blister lidding must be compatible with forming films for efficient sealing. ASTM F2029 helps validate this.
- Temperature Sensitivity: Overheating can cause aluminum delamination or burn-through. Hence, heat seal curve data is critical.
- Replicability: To ensure statistical validity, multiple replicates at each sealing condition must be tested.
Using Cell Instruments HST-01, technicians can avoid guesswork and generate reliable data to ensure regulatory compliance and product quality.
Conclusion
Understanding and optimizing the sealing process of pharmaceutical blister packs is essential for ensuring product safety and performance. Through heat seal integrity testing as described in ASTM F2029, manufacturers can confidently determine the best sealing parameters and maintain high-quality packaging standards.
Cell Instruments provides advanced solutions like the HST-01 Heat Seal Tester, empowering pharmaceutical companies to meet global packaging standards and minimize risk. Whether you’re validating a new material or troubleshooting a sealing issue, our instruments help you test with precision and confidence.
